Custom Wire Harnesses: Design, Manufacturing and Validation

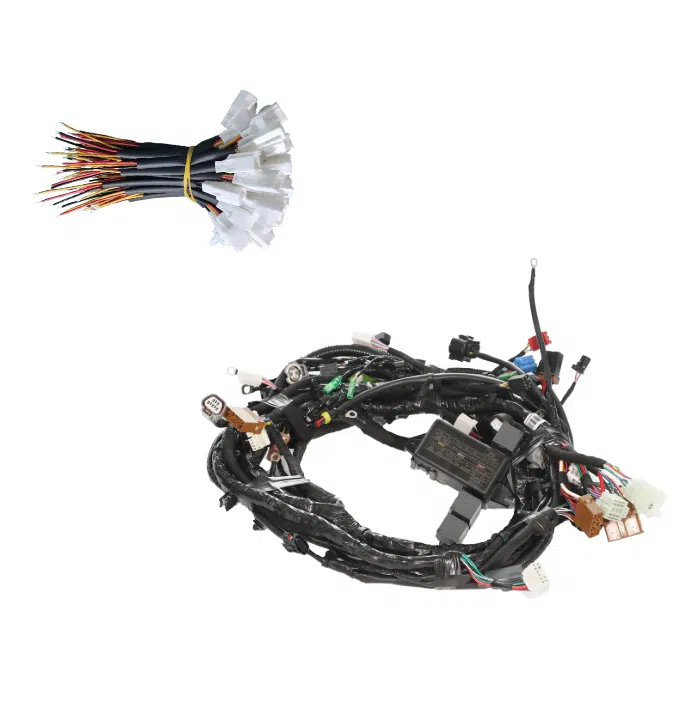

A custom wire harness organizes conductors, terminals, connectors, protection, and identification around a defined electrical and mechanical interface. A reliable design begins with the approved drawing, connector part numbers, pinout, wire specifications, routing envelope, environment, and acceptance criteria. The harness itself should be evaluated as part of the finished equipment, not as a stand-alone guarantee of system compliance or performance.

WIRES supports custom harness projects from design review through controlled production. For an overview of how a harness differs from a cable assembly, see wire harness vs. cable assembly selection guidance.

What a custom wire harness can include

Applications and project boundaries

Custom harnesses are used in industrial controls, automotive subsystems, consumer electronics, medical-device subsystems, instrumentation, heating controls, and powered equipment. Each application has different electrical, mechanical, environmental, regulatory, and documentation requirements. Industry references such as IPC/WHMA-A-620, IEC 60352-2, USCAR documents, or equipment-specific standards may inform an approved project, but a standard reference is not a claim that every WIRES assembly is certified or suitable for every market.

From requirements to production

1. Establish the engineering package

Provide the harness drawing or sample, bill of materials, connector and terminal part numbers, pinout, wire/cable requirements, branch dimensions, labels, routing notes, and revision control. If information is incomplete, a design-for-manufacturability review can identify open questions before tooling or production decisions.

2. Select components against the application

Component selection should consider electrical load, mating interface, conductor range, temperature exposure, movement, fluids, vibration, sealing need, and required documentation. Do not substitute a connector, terminal, or wire merely because it appears physically similar. For terminal-selection context, review wire harness terminals and crimping guidance.

3. Build and document the assembly method

A controlled build normally covers cut length, stripping, terminal crimping, seal placement where specified, connector insertion, branch formation, protection, labeling, and final inspection. Tooling, crimp parameters, work instructions, and acceptance criteria should be tied to the approved component and project documentation.

4. Verify the finished harness

Verification is project-specific. It may include visual workmanship checks, continuity and polarity checks, dimensional confirmation, connector lock and terminal-position checks, and any customer-defined electrical or environmental test. A request for a particular test should identify the method, revision, sample condition, limits, and reporting requirement.

For a process overview, visit WIRES process services and the customized process page.

Common custom harness formats

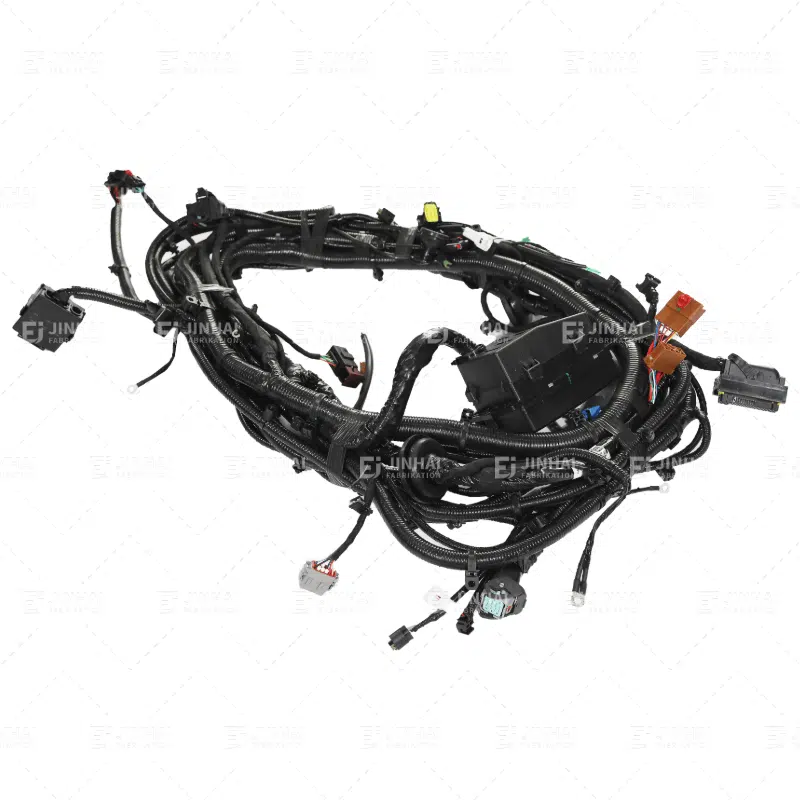

Instrument and control harnesses

Instrument harnesses often combine multiple low-voltage circuits, connectors, labels, and compact routing. Interface drawings and service access are usually as important as cable length. Confirm signal sensitivity, grounding scheme, and connector keying rather than assuming a generic harness layout is compatible.

Engine and vehicle-zone harnesses

Harnesses used around engines or vehicle zones require a design review of temperature, fluid exposure, movement, abrasion, retention, sealing, and vehicle-specific connector interfaces. OEM service information and the approved vehicle configuration are necessary for any replacement or integration project.

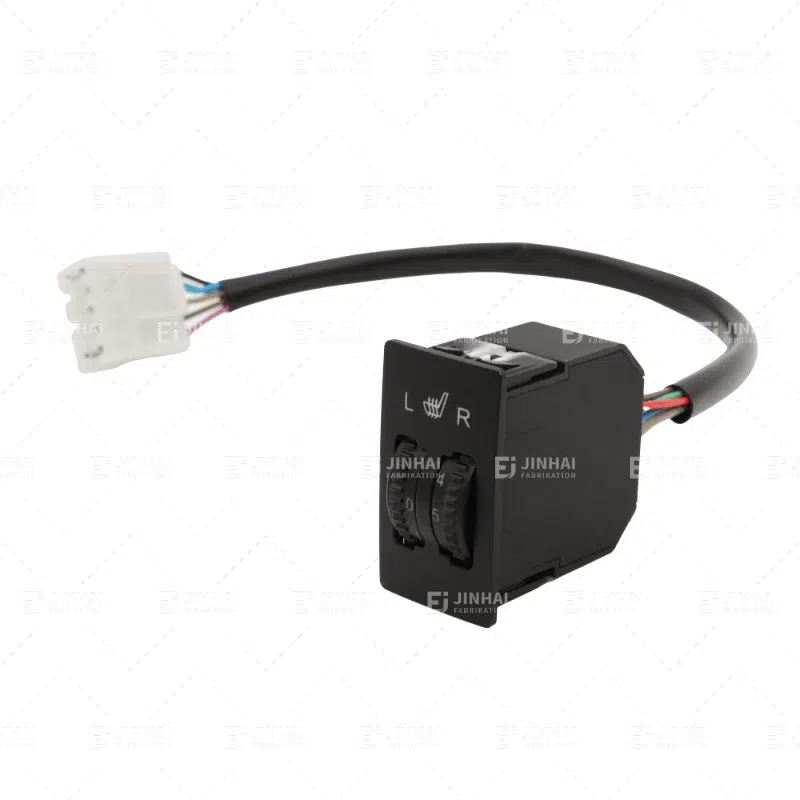

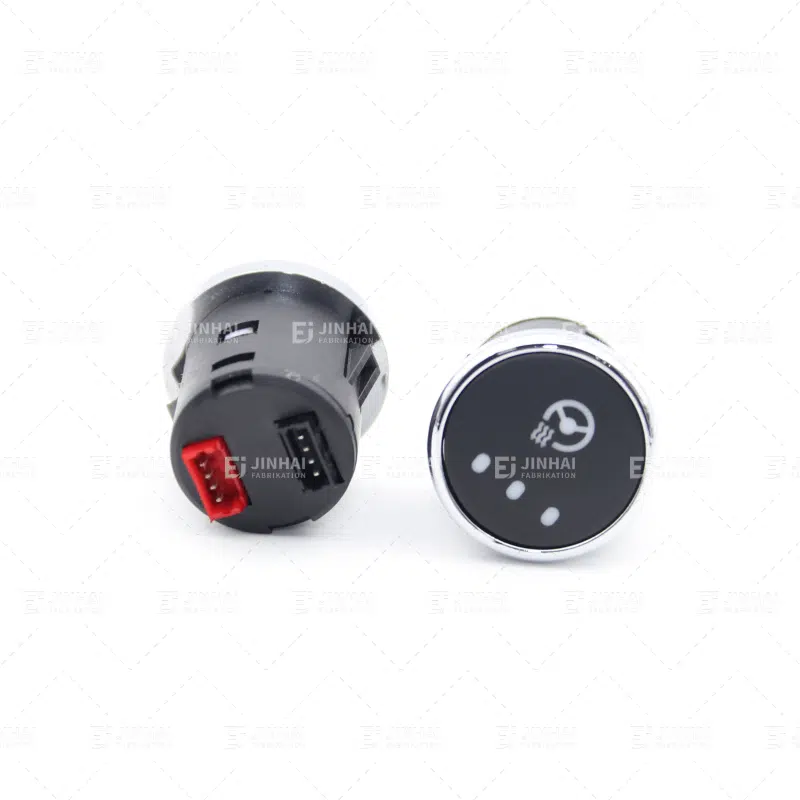

Heating-control and switch harnesses

Switch and heating-control assemblies need verified circuit assignments, switch ratings, connector retention, strain relief, and equipment-level safety requirements. Product appearance does not establish the electrical specification.

Medical and instrumentation cable harnesses

For medical or diagnostic equipment subsystems, define the device interface, cleaning or sterilization exposure if applicable, materials, routing, signal requirements, and customer-specified validation. A cable or harness alone cannot establish medical-device compliance, patient safety, EMC compliance, or diagnostic performance.

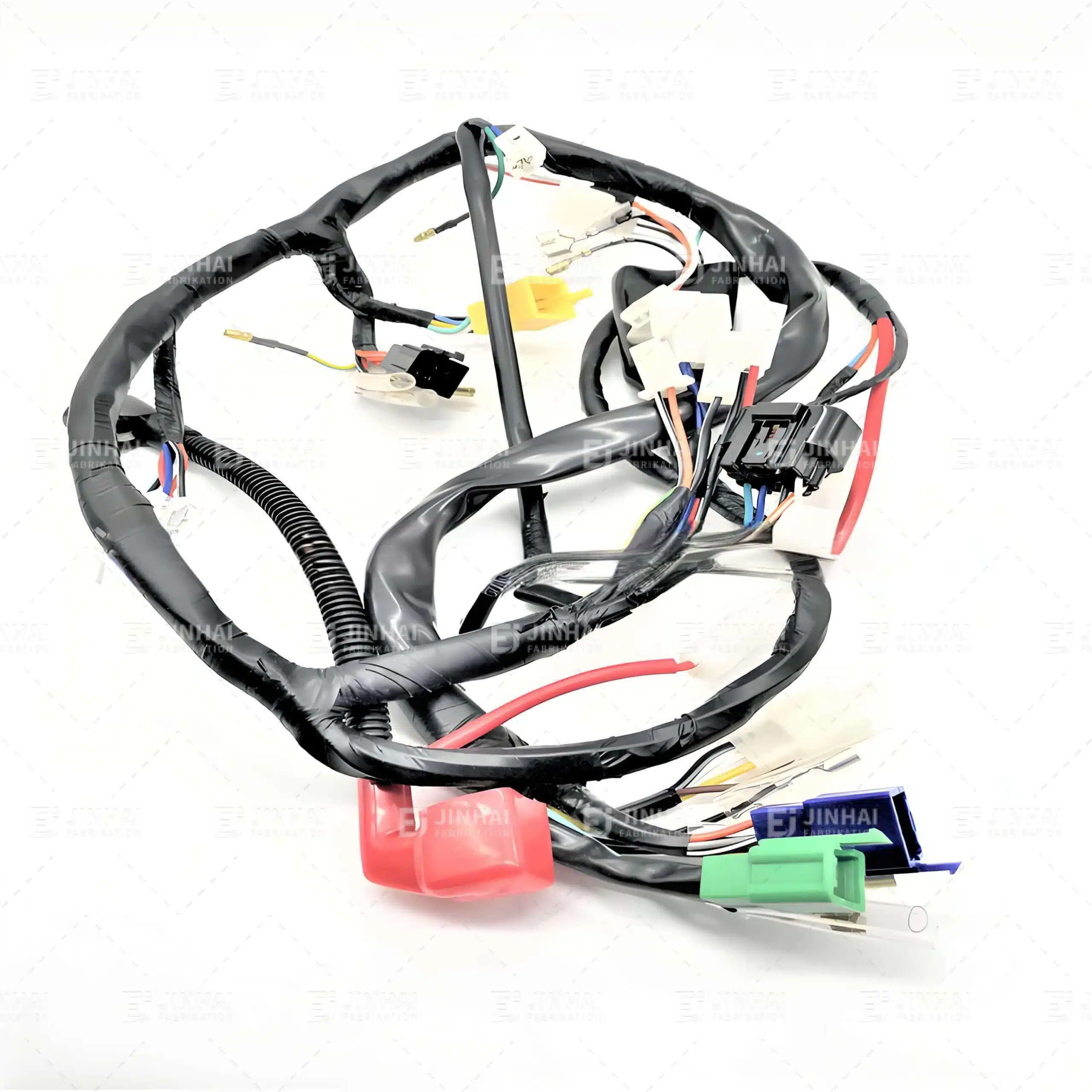

Motorcycle and compact vehicle harnesses

Compact vehicle harnesses benefit from clear branch dimensions, connector indexing, protection, retention, and service documentation. Vehicle model, configuration, circuit diagrams, and mating parts must be verified before a replacement or custom build is approved.

Design review checklist

• Approved drawing, revision level, and bill of materials.
• Connector, terminal, seal, and accessory part numbers with approved substitutions clearly identified.
• Pinout, circuit function, wire/cable construction, and branch dimensions.
• Routing envelope, bend and service constraints, abrasion points, clips, grommets, and strain relief.
• Operating environment: temperature, movement, fluids, moisture, vibration, electrical noise, and cleaning exposure as applicable.
• Labeling, packaging, traceability, inspection, and acceptance requirements.
• Prototype, sample, and production release process defined by the customer project.

Why document the harness rather than rely on generic claims

Cost, durability, shielding, and compatibility depend on the approved design and application. A documented harness reduces ambiguity across engineering, purchasing, assembly, and service. It also creates a basis for reviewing component changes, first articles, and acceptance results. General marketing statements cannot replace a drawing, datasheet, test method, or customer-approved specification.

Related WIRES resources

• What is a wire harness?
• Types of wiring harnesses
• Industrial wire harness solutions
• Automotive wiring harnesses
• Consumer electronics wiring harnesses
• Overmolded cable assemblies

Request a custom wire harness review

Send the available drawing, sample, connector part numbers, pinout, wire and cable requirements, length or branch dimensions, operating environment, quantity forecast, and acceptance requirements. Where information is still being developed, identify the unknowns so they can be addressed during review.

Submit project information

Frequently asked questions

What is the difference between a wire harness and a cable assembly?

A wire harness generally organizes multiple wires, branches, terminations, and protection for an equipment system. A cable assembly can be a simpler terminated cable or a more complex construction. The correct term depends on the design and function.

What files are useful for a custom harness quote?

A drawing, BOM, pinout, connector and terminal part numbers, wire/cable requirements, dimensions, photos or sample, environment, quantity forecast, and acceptance criteria are useful inputs.

Can an existing harness be copied from a sample?

A sample can help identify physical construction, but electrical function, connector part numbers, wire requirements, revisions, and legal or intellectual-property permissions must be confirmed by the project owner.

Which tests should a custom harness receive?

The appropriate checks depend on the approved design. Define the required method, revision, conditions, limits, sampling, and documentation rather than relying on a universal test list.

Can custom harnesses use overmolding?

Where the connector, cable, material, and environmental requirement support it, overmolding can provide strain relief and interface protection. The design still needs to be validated for the intended application.

How are connector substitutions handled?

Substitutions should be reviewed against the exact mating interface, terminal system, sealing, wire range, performance requirements, and approved project change-control process.

How do I start?

Use the form above or contact WIRES with your available project documentation and target application.
